| ブランド名: | FY |
| モデル番号: | FY-51CZ |
| MOQ: | 1 set |
| 支払条件: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| 供給能力: | 300 sets per month |

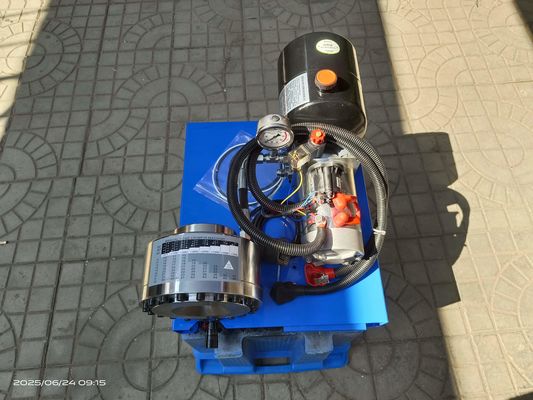

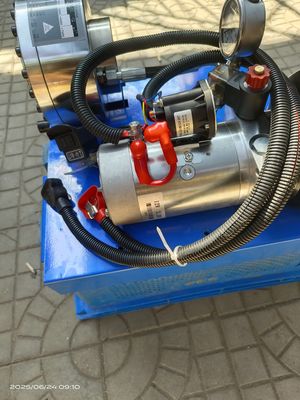

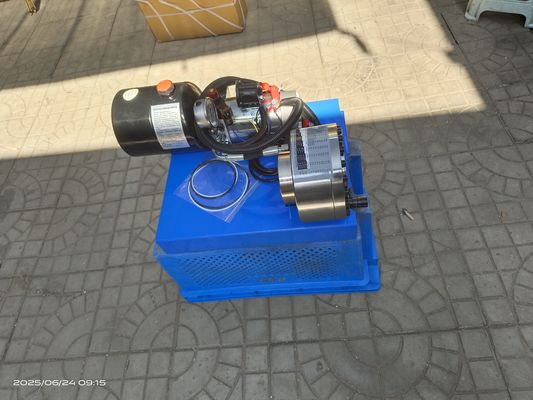

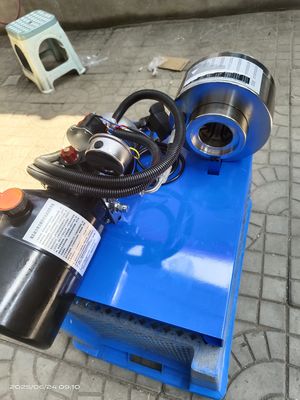

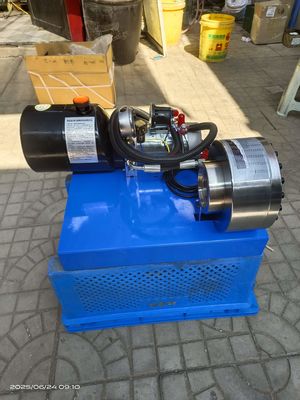

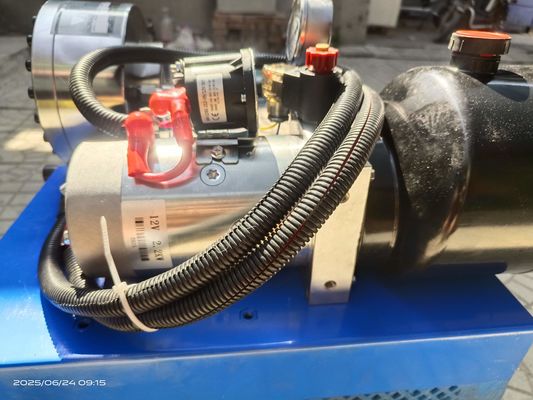

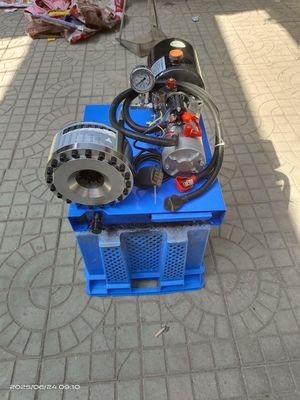

12v 24v Automatic Hose Crimping Machine Battery Drive 1" Hydraulic Hose Crimper From 6 To 25mm With 7 Dies For Car Loading
DESCRIPTION
Introducing our 12V/24V Automatic Hose Crimping Machine, a state-of-the-art battery-driven hydraulic hose crimper designed for efficiency and versatility. This powerful tool is capable of crimping hoses from 6 to 25mm and comes equipped with 7 dies, making it ideal for automotive applications and more.
Key Features
• Dual Voltage Operation: With the ability to operate at 12V or 24V, this machine offers flexibility for various environments, whether in the workshop or on the go.
• Wide Crimp Range: Designed to accommodate hose sizes from 6mm to 25mm, ensuring compatibility with a diverse range of hydraulic hoses.
• Automatic Functionality: The automatic crimping feature enhances productivity, allowing for quick and efficient hose assembly without manual effort.
• Portable Design: Lightweight and compact, this machine is easy to transport, making it perfect for on-site repairs and installations.
Advantages
1. Increased Efficiency: The automatic operation significantly reduces crimping time, enhancing workflow and productivity.
2. Versatile Applications: Ideal for automotive, construction, and industrial applications, this crimper is a valuable tool for any professional.
3. Durable Construction: Built with high-quality materials, this machine is designed to withstand heavy use and deliver reliable performance over time.
4. User-Friendly: The intuitive design makes it easy for operators of all skill levels to use, ensuring consistent results.
TECHNICAL DATA
| Model | FY-25CZ Pipe Crimping Machine |
| Crimping Range | 6-25(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-1(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 7 |
|
output volume of pump
|
4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
|
the max open tolerance
|
30 ±mm
|
| Standard Voltage | 12V/24(V) |
| Motor Power | 1.5(KW) |
| Length | 600(mm) |
| Width | 450(mm) |
| Height | 350(mm) |
| Weight | 52(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
