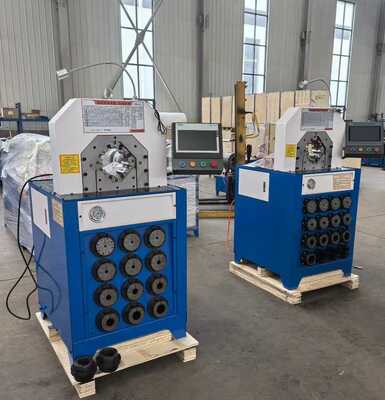

3 Inch 6-76mm Hydraulic Hose Crimping Machine with 15 Dies and Fast Change Mould Design for Efficient Hose Pressing

ブランド名:	FY
モデル番号:	FY-CBK-120C
MOQ:	1セット
価格:	5000
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給能力:	月300セット

詳細情報

製品説明

詳細情報

起源の場所:

中国、上海

証明:

ドキュメント:

OUR CATALOGUE.pdf

重さ:

1250kg

状態:

新しい

寸法(長さ*幅*高さ):

755*1045*1630MM

保証:

1年

提供されるアフターサービス:

ビデオ技術サポート、オンラインサポート

電圧:

110V/220V/380V/415V 50/60Hz

電力(w):

5.5KW

圧着力:

1000T

色:

青/白いですまたは注文

圧着範囲:

6-76mm、1/4インチ～3インチ、1/4インチ～3インチ

製品名:

3 インチ 6-76 ミリメートル 6 ワイヤーホース油圧ホース圧着機 15 ダイ異なる制御システムと高速変更金型設計

アプリケーション:

クリンプホース

無料で死ぬ:

15セット

定格圧力:

31.5MPA

キーワード:

PLCの油圧ホースのひだが付く機械

ハイライト:

3インチホースプレス機、スパイラルホースプレス機、ホースパイププレス機

パッケージの詳細:

標準の木製の箱をエクスポートします

供給の能力:

月300セット

ハイライト:

6-76mm Crimping Range Hydraulic Hose Crimping Machine

15 Interchangeable Dies Hose Pressing Machine

Fast Change Mould Design Hose Crimper

製品説明

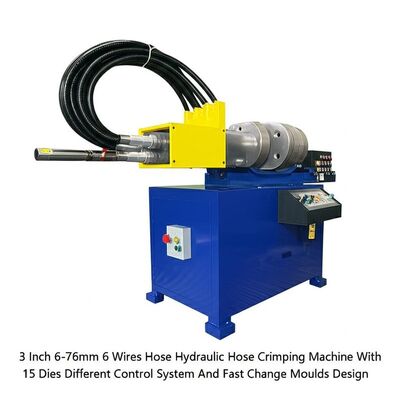

3 Inch 6-76mm 6 Wires Hydraulic Hose Crimping Machine

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a state-of-the-art solution designed to meet the demands of various industries, particularly focusing on hydraulic systems. With its capacity to crimp hoses up to 3 inches in diameter and a range of 6 wires, this machine is perfect for workshops specializing in hydraulic applications, oil distribution, and car repairs. Tailored for the USA market, it caters to businesses that require reliable and efficient hose crimping solutions.

Key Features

Wide Crimping Range: Capable of crimping hoses between 6mm and 76mm, accommodating various hose sizes for broad application versatility
Diverse Die Selection: Equipped with 15 interchangeable dies for different sizes and types of hydraulic tasks
Advanced Control Systems: Multiple control options for enhanced precision and ease of use
Fast Change Mould Design: Quick die switching minimizes downtime and improves operational efficiency
Sturdy Construction: High-quality materials ensure durability and reliable performance in demanding workshop settings

Advantages

Increased Productivity: Efficient crimping of wide hose range enhances overall workshop productivity
Versatile Applications: Ideal for automotive, oil, and hydraulic system repair industries
User-Friendly Operation: Intuitive design and advanced controls suitable for both experienced technicians and new users
Cost-Effective Solution: Consolidates multiple capabilities into one machine while delivering high-quality results
Safety Features: Built-in safety mechanisms protect both user and equipment during operation

Technical Specifications

Specification	Details
Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	15 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg

Additional Models

Model	Specifications
FY-CBK-120C Hose Pressing Machine	Crimping Range: 6-76mm (1/4"-3") Crimping Force: 2800KN Max. Opening: 165mm Customized die sets available Special voltage options: 110V/220V/380V/415V 50/60Hz

Frequently Asked Questions

What sizes of hoses can this machine crimp?
This machine effectively crimps hoses ranging from 6mm to 76mm, accommodating a diverse array of hydraulic applications.
How many dies are included with the machine?
The hydraulic hose crimping machine comes with 15 interchangeable dies for various hose sizes and types.
What types of control systems does the machine offer?
The machine features different control system options for customized operations based on specific requirements.
Is the machine suitable for continuous use in a workshop environment?
Yes, designed for durability, this machine can handle continuous operation in high-demand hydraulic shops.
Does the fast change mould design really reduce downtime?
Absolutely! The fast change mould design allows for quick die swaps, significantly reducing downtime during crimping tasks.
