6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

ブランド名:	FY
モデル番号:	FY-P38
MOQ:	1セット
価格:	USD$ 1850/1800/1750/1700
支払条件:	L/C、T/T、D/A、D/P、ウェスタンユニオン、マネーグラム
供給能力:	月300セット

詳細情報

製品説明

詳細情報

起源の場所:

中国、上海

証明:

電圧:

220V/240V/380V/415V (オプション)

総重量:

300kgs

正味重量:

275kg

電力(w):

3KW/4KW

寸法(長さ*幅*高さ):

950*630*700 mm

パッケージ寸法:

1000*680*750 mm

保証:

1年

状態:

新しい

提供されるアフターサービス:

ビデオ技術サポート、オンラインサポート

圧着力:

300トン/0.3MT

製品名:

6-51mm 油圧ホース圧着機最大 2.5 インチ、ラックと高速交換金型ツール、および多用途圧着用の 10 個の交換可能なダイス付き

圧着範囲:

6-51mm/1.5インチ/2インチ

色:

青い青いオーダーメイド

応用:

クリンプホース

無料で死ぬ:

10セット

システム圧力:

26MPa / 31.5MPa / 260バール / 315バール

パンプの出力量:

2.5L/5L

ハイライト:

高度油圧管のひだが付く機械、ダッシュ制御油圧管のひだが付く機械、管のひだが付く機械

パッケージの詳細:

木箱

供給の能力:

月300セット

ハイライト:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

10 Interchangeable Dies Hose Crimper

Fast Change Mould Tool Hydraulic Crimper

製品説明

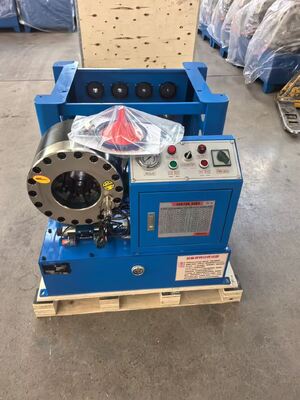

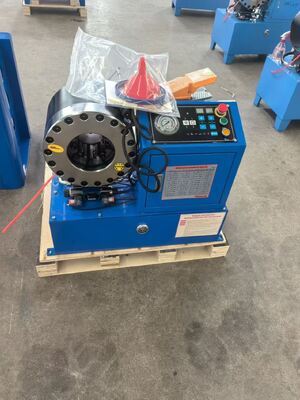

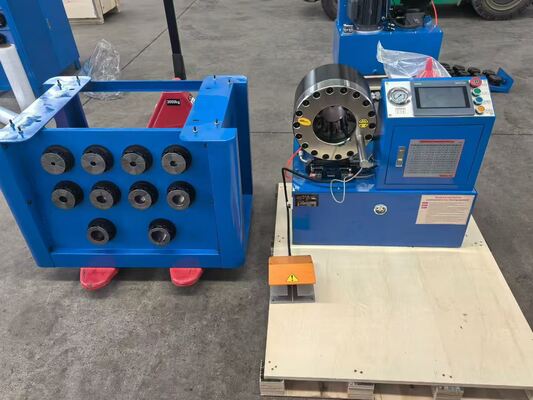

6-51mm Hydraulic Hose Crimping Machine

Professional hydraulic hose crimping machine with 2.5 inch capacity, featuring rack and fast-change mold tool with 10 interchangeable dies for versatile crimping applications.

Product Overview

The 6-51mm Hydraulic Hose Crimping Machine delivers high-performance crimping for various hydraulic applications. Engineered to handle hose sizes up to 2.5 inches, this versatile machine includes a rack and fast-change mold tool with 10 interchangeable dies for maximum efficiency. Ideal for hydraulic repair shops, automotive service centers, and oil industries, this professional-grade equipment serves markets in the USA, Europe, and Southeast Asia.

Key Features

Wide Crimping Range: Accommodates hose sizes from 6mm to 51mm for comprehensive hydraulic hose coverage
Large Hose Capacity: Crimps hoses up to 2.5 inches for demanding industrial applications
Fast Change Mould Tool: Quick die adjustments minimize downtime and maximize productivity
10 Interchangeable Dies: Seamless transitions between different hose sizes for enhanced versatility
Durable Construction: High-quality materials ensure long-lasting performance in heavy-duty use

Operational Advantages

Increased Productivity: Fast-change tool and wide crimping range enable efficient project completion
Versatile Applications: Suitable for hydraulic repair shops, automotive services, and oil distribution
Reliable Performance: Industry-standard design ensures consistent, high-quality crimping results
Cost-Effective Solution: Consolidates multiple functionalities, reducing equipment investment
Minimal Maintenance: Robust construction requires less frequent upkeep for operational efficiency

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
