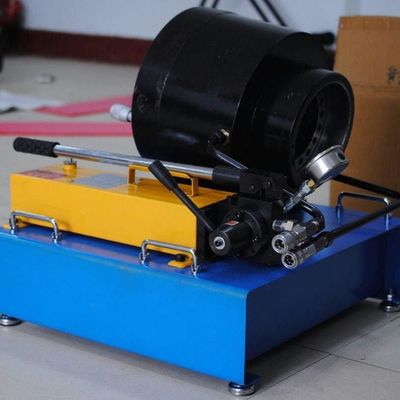

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications

ブランド名: FY
モデル番号: FY-51CSD
MOQ: 1セット
価格: USD$ 1300
支払条件: L/C、D/A、D/P、T/T、マネーグラム、ウェスタンユニオン
供給能力: 月300セット
詳細情報
起源の場所:
中国、上海
証明:
CE
ドキュメント:
重さ:
200kg
状態:
新しい
寸法(長さ*幅*高さ):
550*670*555MM
保証:
1年
提供されるアフターサービス:
ビデオ技術サポート、オンラインサポート
電力(w):
0kw
電圧:
0V
圧着力:
600T
色:
青かカスタム
圧着範囲:
1/4" to2」、1/4" - 2つ
製品名:
2 インチ青色の高効率 600T 手動ホース圧着機 6-51mm 圧着範囲と油圧アプリケーション用の 10 個の交換可能なダイス
応用:
クリンプホース
無料で死ぬ:
10セット
定格圧力:
70 Mpa
キーワード:
手動ひだが付く機械、油圧ホースのひだが付く機械
パッケージの詳細:
標準の木製の箱をエクスポートします
供給の能力:
月300セット
ハイライト:

600T Crimping Force Hose Crimper

,

6-51mm Crimping Range Manual Hose Crimping Machine

,

10 Interchangeable Dies Hydraulic Hose Crimping Machine

製品説明
2 Inch Blue High-Efficiency 600T Manual Hose Crimping Machine
Introduce your workshop to reliable, heavy-duty crimping with the 2 Inch Blue High-Efficiency 600T Manual Hose Crimping Machine. Engineered for hydraulic applications, this robust manual crimper delivers a powerful 600T crimping force and covers a wide hose range from 6mm to 51mm (up to 2 inches).
Product Features & Characteristics
  • 600T High Crimping Force: Ensures consistent, secure crimps for high-pressure hydraulic hoses and fittings
  • Wide Crimping Range: Supports hose sizes from 6mm to 51mm (up to 2 inches) for broad shop compatibility
  • Manual Operation: Reliable mechanical system that requires no electricity—ideal for mobile shops or locations with limited power
  • 10 Interchangeable Dies: Includes ten standard dies for fast changeover between common hose sizes and fittings
  • Sturdy Blue Finish: Durable paint and heavy-gauge steel construction resist workshop wear and provide a professional appearance
  • Compact Footprint & Stable Base: Designed to save floor space while maintaining stability during heavy crimping cycles
  • Simple Controls & Ergonomics: Intuitive manual levers and clear die seating reduce operator fatigue and speed up workflow
Key Advantages
  • Cost-Effective and Energy-Free: Manual operation eliminates electrical costs and reduces maintenance complexity
  • High Reliability: Fewer electronic components mean lower failure rates and long service life in demanding service environments
  • Versatile Application: Suitable for hydraulic systems, automotive hose assemblies, oil and industrial hose production and repair
  • Fast Die Changes: Ten interchangeable dies enable quick turnaround on varied jobs, improving workshop throughput
  • Portability and Flexibility: Compact manual design makes it easier to move or install where needed compared with large electric units
Technical Specifications
Model FY-51CSD Manual Crimper
Crimping Range 6-51mm (1/4"-2" inner diameter)
Crimping Force 600 Tons
Maximum Open Diameter 114mm
Die Sets 10 sets
System Pressure 70 MPa
Accuracy 0.01mm
Work Efficiency 10 pieces/hour
Dimensions 550mm * 670mm * 555mm
Weight 200kg
Additional Features
  • Small size and light weight for easy transportation
  • World-famous hydraulic pump system
  • High accuracy and precision crimping
  • High efficiency with Finn Power Dial control
  • Stable performance even after years of service

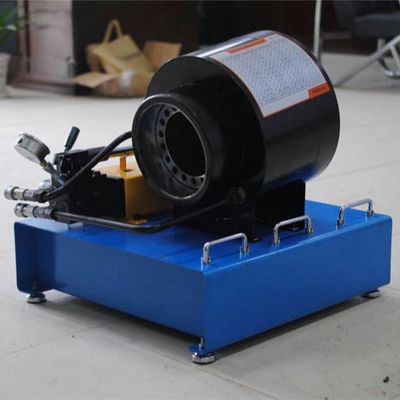

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 0

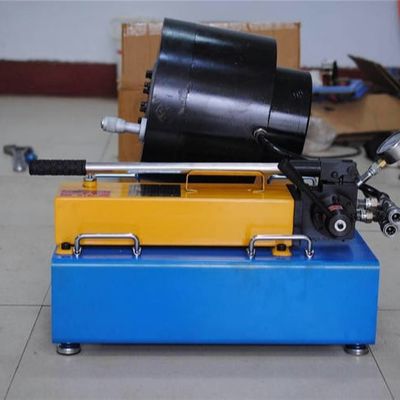

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 1

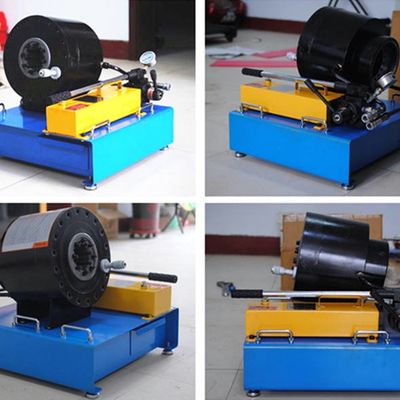

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 2

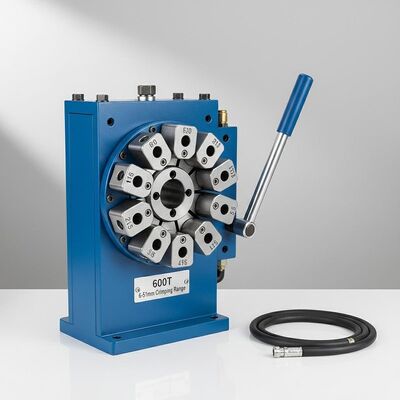

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 3

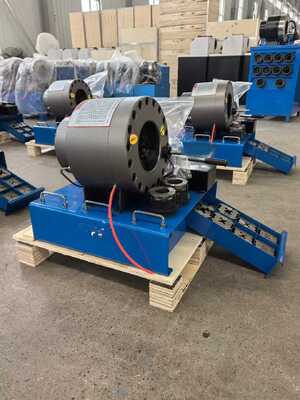

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 4

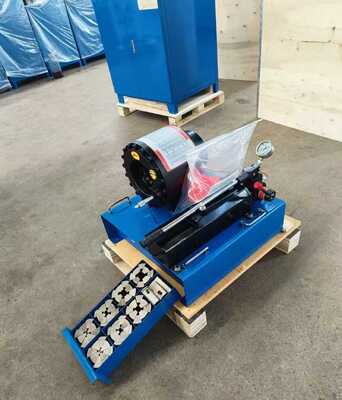

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 5
Machine Features
Crimping Dial
High accuracy and stability with long service life

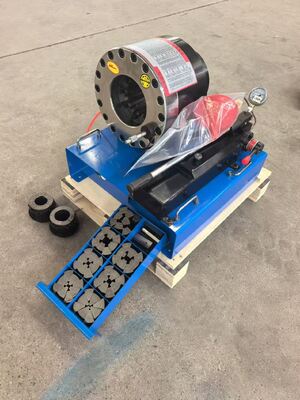

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 6
Compact Design
FY-51CSD weighs only 200kg with compact dimensions for easy transportation to any location

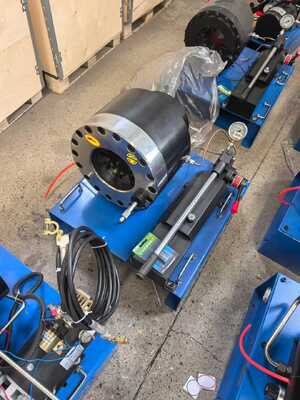

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 7
Quick Die Sets Installation
FY-51CSD enables rapid die set changes and installation to save time and improve productivity
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 8
Customization Options
Different machine colors or company LOGO can be customized according to customer requirements
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 9
Application Fields
The portable FY-51CSD crimping machine offers flexible hose crimping capabilities for on-site applications without power supplies. With different die sets, it can perform various tasks including hydraulic hose assembly up to 2 inches, connecting steel tubes, pressing wires and cables, and more.
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 10
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 11
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 12
Frequently Asked Questions
What maximum hose size can this machine crimp?
The machine crimps hoses up to 2 inches (51mm) in diameter.
Is electricity required to operate the crimper?
No—this is a manual crimping machine designed to work without electrical power.
How many dies are supplied and can I get additional dies?
Ten interchangeable dies are included. Additional dies are available to match specific fittings or non-standard hose sizes—contact the supplier for options.
Is this machine suitable for high-pressure hydraulic hoses?
Yes. With a 600T crimping force, it is designed to produce secure crimps for high-pressure hydraulic hose assemblies when used with correct dies and fittings.
What maintenance is required?
Routine checks include lubricating moving parts, inspecting dies for wear, and tightening fasteners. The manual design simplifies maintenance compared to electric systems.
